INTRODUCTIONS

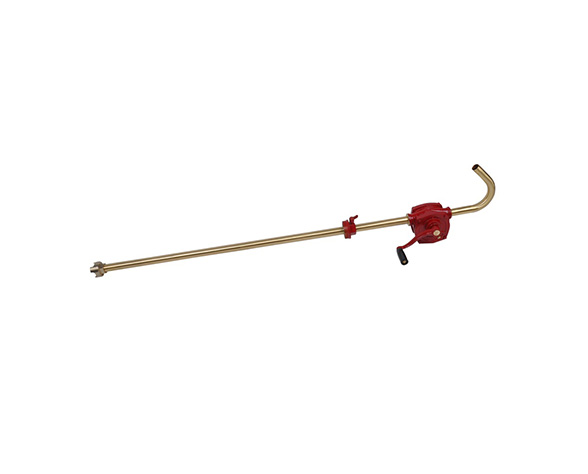

The material is aluminum bronze,It is easy to pump oil, and easily install and operate, and durable.It is suitable for pumping heavy oil, diesel, lubricating oil, kerosene, motor oil, food oil and other oils in flammable and explosive occasions.

    Attentions：

1.This product should not be used for liquids that are corrosive to metals and rubbers. It should not be used for organic solvents;

2.The hand-pumped oil pump is generally not assembled when delivery, and users need to install it by themselves. Before installation, the inlet and outlet should be distinguished first, and remember not to make mistakes;

3.When installing, the pipe thread should be coated with a little butter and tightened to keep it sealed to prevent air from affecting the flow;

4.Before use each time, pour a small amount of oil into the pump from the oil outlet pipe, and then shake the rocker to pump the oil in the direction indicated. Do not use too much force, and make the oil pump move at a uniform speed;

5.Add a small amount of lubricant to the pump after use;

6.If it is not used for a long time, in addition to adding a small amount of oil to infiltrate the oil pump cavity, you also need to seal the nozzle with a plastic bag;

7.When used for edible oil, edible oil should be used instead of engine oil to lubricate the pump body.

Reasonable and standardized use can eliminate unnecessary personal injury and property damage, and extend the service life of the hand-operated oil pump.

    Non sparking tools

The material of non sparking tools: Al-Br(QAl11-4-4), Be-Cu(QBe2)

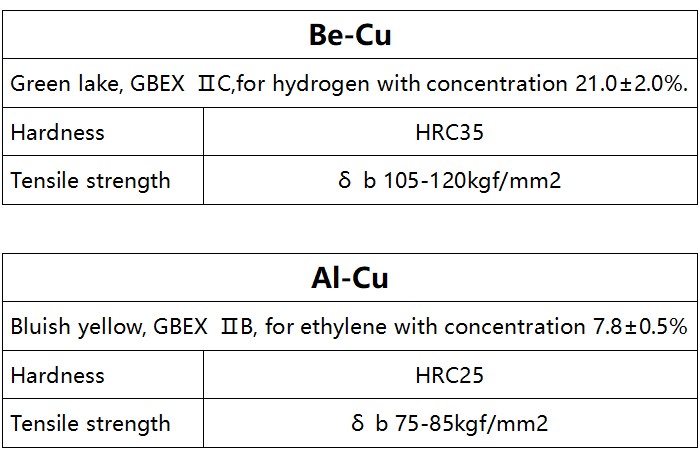

Be-Cu: the color is green lake,hardness is not less than HRC35,tensile strength δ b 105-120kgf/mm2;standard code GBEX ⅡC,suitable for hydrogen with concentration 21.0±2.0%.Beryllium copper alloy with anti-magnetic performance.

Al-Cu: the color is bluish yellow,hardness is not less than HRC25,tensile strength δ b 75-85/mm2;standard code GBEX ⅡB,suitable for ethylene with concentration 7.8±0.5%,GBEX ⅡA (propane 6.5±0.5%),Ⅰ（methane 6.5±0.5%）。

Non sparking tools of XIN DA are made of high strength copper alloy.This kind hand tools can effectively prevent burning and explosion accidents caused by friction and collision between tools and tools in the flammable and explosive workplace.The explosion-proof performance received the certificates according to the national standard GB10686-2003, with the function of high intensity and good toughness.

The products are widely used in petroleum,chemical industry,mining,gas,coal,oxygen-producing,pharmacy,smelting,powder,leather,airplane,marine engineering etc,suitable for warehouse that operate flammable and explosive products,electrolytic workshops,communication assembly workshops,and requires that the tools are not rusty,wear-resistant and anti-magnetic during the checking process.
