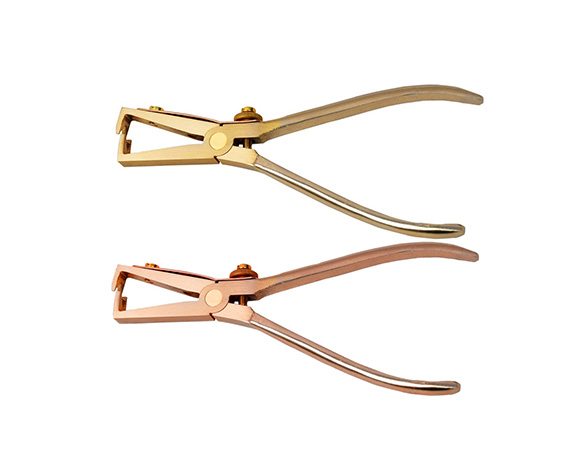

Wire stripper is one of the tools commonly used by internal electricians, motor repairs, and instrumentation electricians. It is used by electricians to strip the surface insulation layer of the wire head. The wire stripper can separate the insulated sheath from the wire and prevent electric shock.

Points for use:

According to the diameter of the wire, select the hole diameter of the wire stripper blade.

Select the corresponding stripping edge according to the thickness and type of the cable.

Place the prepared cable in the middle of the blade of the stripping tool and choose the length to be stripped.

Hold the handle of the stripping tool and clamp the cable, slowly and slowly peel the outer skin of the cable.

Loosen the tool handle and take out the cable, the cable metal is exposed neatly, and the remaining insulating plastic is intact.

The material of non sparking tools: Al-Br(QAl11-4-4), Be-Cu(QBe2)

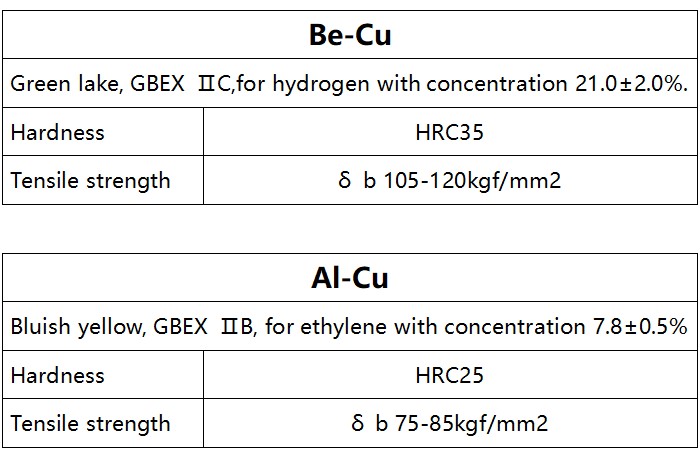

Be-Cu: the color is green lake,hardness is not less than HRC35,tensile strength δ b 105-120kgf/mm2;standard code GBEX ⅡC,suitable for hydrogen with concentration 21.0±2.0%.Beryllium copper alloy with anti-magnetic performance.

Al-Cu: the color is bluish yellow,hardness is not less than HRC25,tensile strength δ b 75-85/mm2;standard code GBEX ⅡB,suitable for ethylene with concentration 7.8±0.5%,GBEX ⅡA (propane 6.5±0.5%),Ⅰ（methane 6.5±0.5%）。

Non sparking tools of XIN DA are made of high strength copper alloy.This kind hand tools can effectively prevent burning and explosion accidents caused by friction and collision between tools and tools in the flammable and explosive workplace.The explosion-proof performance received the certificates according to the national standard GB10686-2003, with the function of high intensity and good toughness.

The products are widely used in petroleum,chemical industry,mining,gas,coal,oxygen-producing,pharmacy,smelting,powder,leather,airplane,marine engineering etc,suitable for warehouse that operate flammable and explosive products,electrolytic workshops,communication assembly workshops,and requires that the tools are not rusty,wear-resistant and anti-magnetic during the checking process.
